Primitives and event states

When an event is activated it can be manipulated in various ways. The event can be appended to a queue, it can be put back in the scheduler and so on. On its way it changes state. We identify the following states an event can be in (based on the simula states) :

• passive - indicating that the event is currently not available for any processing.
• active - indicating that this is the event currently being processed.
• queued - the event is in a queue.
• pending - the event is in the scheduler.
• conditional - indicating the event is on the conditional list.
• closed - the event is on the conditional list but unavailable.

The various primitives that manipulate the event and cause the change of state are then:

• passivate - which takes an event out of the simulation but does not destroy the event.
• hold - which takes a passive or active event and adds it to the conditional list. This event then fires after each activated event.
• schedule - which takes a passive event and adds it to the scheduler. This event then executes after a specified period.
• wait - which puts the event currently executing on the scheduler.
• activate - which takes a passive, pending or conditional event and schedules it to become active at the current simulation time. A typical use is to bring forward the activation of an event at present time.
• terminate - which terminates an active or passive event.
• append, prepend - which add passive and active events to a queue.
• extract, removefront, removeback - these functions obtain events from the queue.
• withdraw, reinstate - which respectively prevent a conditional event from executing by changing its state to closed and put a closed event back in its conditional state.

The invoking of a primitive has not always effect. The event should be in the correct state first. The invoking of the hold primitive for example assumes a passive or active event. This state can be obtained by first passivating or activating the event.

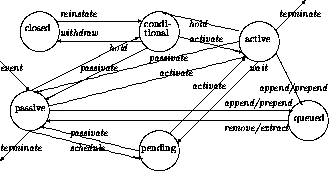

Consider the following transition diagram that shows the different states an event can be in, in relationship with the different functions, that manipulate them. The central state of an event is the passive state. Most events should first be passivated before they continue. Notice that an event also changes state if it is pending and is due to execute. This event (the first event in the scheduler) is extracted from the scheduler and becomes active. An event that is on the conditional list stays conditional while executing until it is explicitly passivated.

Entities

An entity (that combines several related events) has the same states and primitives as an event. The difference is in the use of an additional phase, as is explained in section 3.4.
