LOD {
exposedField MFNode level []
field SFVec3f center 0 0 0 # (- , )
field MFFloat range [] # (0, )
}
The LOD node specifies various levels of detail or complexity for
a given object, and provides hints allowing browsers to automatically
choose the appropriate version of the object based on the distance from
the user. The level field contains a list of nodes that represent
the same object or objects at varying levels of detail, ordered from
highest level of detail to the lowest level of detail. The range
field specifies the ideal distances at which to switch between the levels.
Section "2.6.5 Grouping and children nodes"
contains details on the types of nodes that are legal values for level.
TECHNICAL
NOTE: It
might seem strange that the "children" of an LOD node aren't stored
in a field called children, but are stored in the level field.
Grouping nodes that have a children field (Anchor, Transform, Collision,
Group, Billboard) all share similar semantics. The order of the
nodes in the children field doesn't matter and they always
draw all of them. LOD levels have different semantics--the order
of levels is critical and only one level is drawn at a time.
|
TIP:
It
is often useful to use an empty Group or WorldInfo node as the last
level of an LOD so nothing is displayed when an object is far enough
away. It can also be very useful to use an empty Group or WorldInfo
as the first LOD level so that very large objects disappear if the
user gets too close to them. For example, the exterior of a skyscraper
might be modeled in several levels of detail, separately from each
part of the building's interior. The center of the model is the center
of the building. The highest level of detail, shown when the user
is inside the building, might be nothing at all since there is no
reason to show the exterior when the user is inside the building.
|
The center field is a translation offset in the local coordinate
system that specifies the centre of the LOD node for distance calculations.
The number of nodes in the level field shall exceed the number
of values in the range field by one (i.e., N+1 level
values for N range values). The range field contains monotonic
increasing values that shall be greater than 0. In order to calculate
which level to display, first the distance is calculated from the viewer's
location, transformed into the local coordinate system of the LOD node
(including any scaling transformations), to the center point
of the LOD node. The LOD node evaluates the step function L(d)
to choose a level for a given value of d (where d is the
distance from the viewer position to the centre of the LOD node).
Let n ranges, R0, R1,
R2, ..., Rn-1, partition
the domain (0, +infinity) into n+1 subintervals given
by (0, R0), [R0, R1)...
, [Rn-1, +infinity). Also, let
n+1 levels L0, L1,
L2, ..., Ln-1 be the
values of the step function function L(d). The level node, L(d),
for a given distance d is defined as follows:
L(d) = L0, if d < R0,
= Li+1, if Ri <= d < Ri+1, for -1 < i < n-1,
= Ln-1, if d >= Rn-1.
Specifying too few levels will result in the last level being used
repeatedly for the lowest levels of detail. If more levels than ranges
are specified, the extra levels are ignored. An empty range field is
an exception to this rule. This case is a hint to the browser that it
may choose a level automatically to maintain a constant display rate.
Each value in the range field shall be greater than the previous
value; otherwise results are undefined.
LOD nodes are evaluated top-down in the scene graph. Only the descendants
of the currently selected level are rendered. All nodes under an LOD
node continue to receive and send events regardless of which LOD node's
level is active. For example, if an active TimeSensor node is
contained within an inactive level of an LOD node, the TimeSensor node
sends events regardless of the LOD node's state.

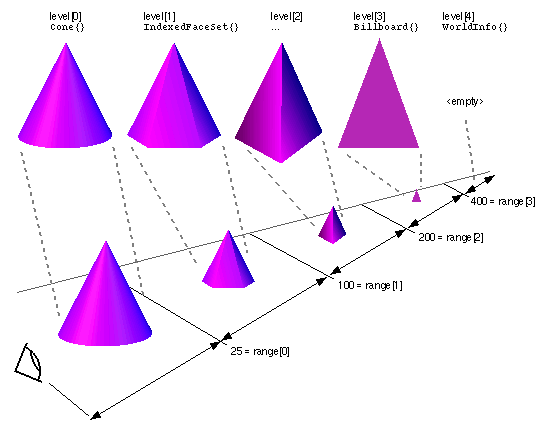

Figure 3-35: LOD Node
TIP:
LOD
is meant to be used to optimize performance by drawing fewer or
simpler polygons for objects that are far away from the viewer.
Because browsers may adjust or ignore the LOD switching distances
to maintain a reasonable frame rate, content creators should refrain
from using LODs for other special effects. For example, if you
want a door to open as the user approaches it, you should use
a ProximitySensor. If you use an LOD (with the closest level being
a door fully open and the farthest being a door fully closed),
you may not get the behavior you expect in all implementations.
Various
other types of level-of-detail schemes can be created using
ProximitySensors, Scripts, and Switch nodes. For example, a
ProximitySensor can report the orientation of the viewer with
respect to the ProximitySensor's coordinate system. You could
give that information to a Script that then sets the Switch
to display a rectangle with a prerendered texture map of the
object from that viewing angle. In fact, an LOD that just switches
based on distance can be recreated using a ProximitySensor,
and a Switch node.
|
TIP:
LOD
is the most important node in VRML for performance tuning. Use
it whenever possible to avoid unnecessary rendering complexity
of objects that are far away or out of view. Note that a large
percentage of the scene will be at a low LOD level most of the
time. Thus, it is important to create very low-complexity versions
of the objects (e.g., one to four polygons) for the lowest or
second-to-lowest level of the LOD. Authors will find that making
the lowest level invisible (e.g., WorldInfo node) helps performance
considerably and is hardly noticed by the user (especially when
used with a Fog node to hide popping). Three to four levels are
recommended, with the lowest containing a WorldInfo and the second-to-lowest
containing a very low polygon count Shape. |
TIP:
Use the Inline node to define the children of the more complex levels
of the LOD. This has the nice result of delaying the download of
the geometry until it is needed. Often, large portions of the scene
will not be downloaded since the user restricted navigation to a
small part of the world and is not penalized by waiting for the
entire world to download. It is recommended that the lowest visible
level of the LOD not be inlined. This ensures that there is always
something to render whether the browser is busy downloading or not
(or if the connection is down). |
TECHNICAL
NOTE: The
ideal distance to switch between levels is the nearest distance
at which a viewer with the default field-of-view (45 degrees; see
the Viewpoint node) cannot detect the change, assuming a display
device with infinite resolution being viewed by a person with 20/20
vision. Theoretically, given a set of LOD levels, a computer could
compute the ideal distance by rendering the levels at various distances
and resolutions, performing pixel comparisons on the results, and
taking into account average human physiology. However, it is more
practical for the scene creator to specify reasonable switching
distances based on their knowledge of how much " LOD popping" they
are willing to tolerate for each object. For unimportant objects
it is best to omit ranges entirely, allowing the browser to choose
the best level it has time to render. For important objects, you
might combine the two techniques. For example, there might be three
representations of an object that are acceptable as close-up views
when the user is within ten meters. And there might be two simpler
representations (perhaps a simple Box and nothing at all) that are
acceptable when the user is farther than ten meters. This can be
expressed to the VRML browser as
LOD { # Two level LOD, near and far:
range [ 10 ]
level [
LOD { # Performance LOD: Any of these OK when near:
level [
DEF HIGH Inline { url "...High.wrl" }
DEF MEDIUM Inline { url "...Medium.wrl" }
DEF LOW Inline { url "...Low.wrl" }
]
}
LOD { # Second performance LOD: these OK when far:
level [
USE LOW # Lowest level OK when far away,
Shape { # or display a simple Box,
geometry Box { size ... }
appearance Appearance { material Material { ... } }
}
WorldInfo { } # or, display nothing.
]
}
]
}
|
TECHNICAL
NOTE: Actually,
implementations can optimize away changes made to things that cannot
be seen (or heard or otherwise detected by the user interacting
with the virtual world), and might not generate events for a TimeSensor
modifying objects underneath an LOD level that is not being seen.
Since there are no guarantees about how often a TimeSensor generates
events while it is active, it is perfectly legal to have unseen
TimeSensors generate no events while they are hidden. This is the
key to VRML's scalability and is what makes VRML theoretically capable
of dealing with arbitrarily large worlds.
Combining
LOD with the Inline node or EXTERNPROTO instances is very powerful,
allowing optimization of both rendering speed and conservation
of network bandwidth. If the user never gets close to an object,
only a coarse representation of the object needs to be loaded
from across the network and displayed. Implementations can globally
optimize rendering time, figuring out which LODs are most important
(based on the range hints given by the scene creators and any
built-in heuristics) and adjusting which levels are drawn to give
the best results possible. Implementations can also globally optimize
network bandwidth, allocating more bandwidth to important objects
(or to objects that it might predict will soon be important, perhaps
based on the direction the user is moving) and less to unimportant
objects. If LOD was not a built-in node, these kinds of global
optimizations done by the browser would not be possible.
|
EXAMPLE
(click to run): The
following example illustrates typical use of the LOD node (see
Figure 3-35). Note that each level may contain any type of node.
For example, level 0 contains a Cone node for maximum fidelity,
while levels 1 and 2 use an IndexedFaceSet, level 3 uses a Billboard,
and the last level is basically empty but uses a WorldInfo node
as a placeholder. It is very good for performance to keep the
last level empty. There are several options for creating an
empty level. WorldInfo is the best choice since it contains
no state and should have a small memory overhead. An empty Group
node is a second option (and possibly more logical) for creating
an empty level, but may incur traversal overhead.
#VRML V2.0 utf8
LOD {
range [ 25, 100, 200, 400 ]
level [
# level 0 - default gray, lit cone
Transform { translation 0 1.5 0 children
Shape {
appearance DEF AP Appearance { material Material {} }
geometry Cone { bottomRadius 1 height 3 }
}
}
# level 1 - lit, 8 triangle cone approximation
Shape {
appearance USE AP
geometry IndexedFaceSet {
coord Coordinate {
point [ 1 0 0, .707 0 -.707, 0 0 -1,
-.707 0 -.707, -1 0 0, -.707 0 .707, 0 0 1,
.707 0 .707, 0 3 0 ] }
coordIndex [ 0 1 8 -1 1 2 8 -1 2 3 8 -1 3 4 8 -1
4 5 8 -1 5 6 8 -1 6 7 8 -1 7 0 8 -1
0 7 6 5 4 3 2 1 ]
}
}
# level 2 - lit, tetrahedron
Shape {
appearance USE AP
geometry IndexedFaceSet {
coord Coordinate {
point [ 1 0 0, 0 0 -1, -1 0 0, 0 0 1, 0 3 0 ] }
coordIndex [ 0 1 4 -1 1 2 4 -1 2 3 4 -1
3 0 4 -1 0 3 2 1 ]
}
}
# level 3 - unlit, medium gray billboarded polygon
Billboard {
children Shape {
geometry IndexedFaceSet {
coord Coordinate { point [ 1 0 0, 0 3 0, -1 0 0 ] }
coordIndex [ 0 1 2 ]
colorPerVertex FALSE
color Color { color 0.5 0.5 0.5 }
}
}
}
# level 4 - empty
WorldInfo {}
]
}
|
|
